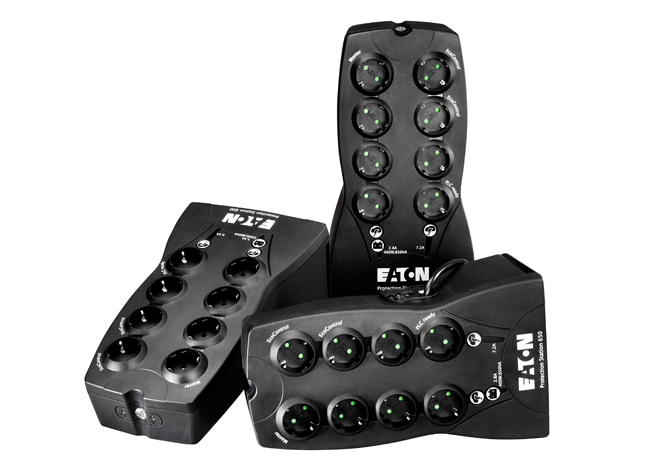

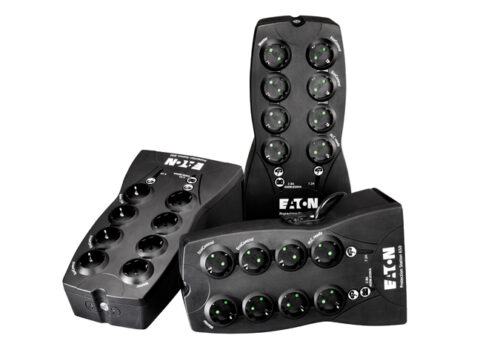

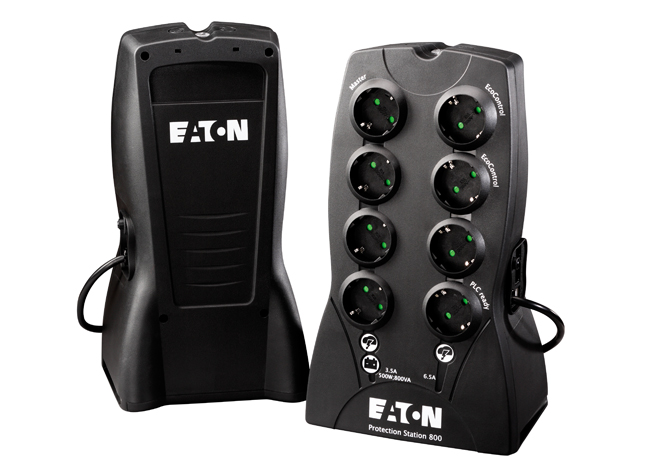

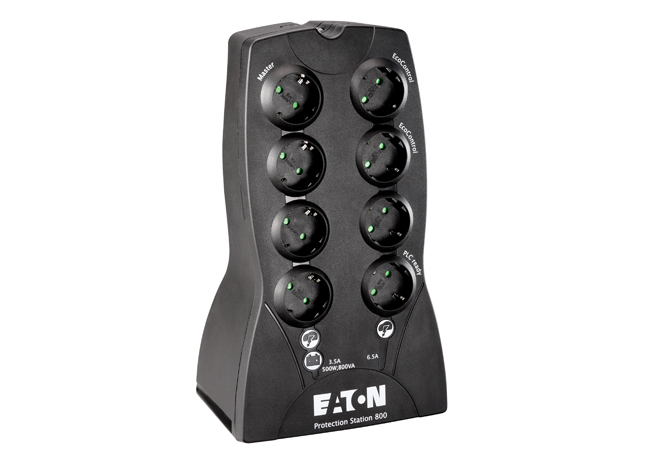

Protection Station 500/600/800 VA
The Eaton Protection Station features a 3-in-1 concept :
UPS + surge protection + multiple socket device with energy saving function
- 3-in-1 concept : UPS + surge protection + multiple socket device
- Includes a high performance surge protective device which complies with IEC 616431 standard
- EcoControl function helps you save up to 30% energy compared to previous generation UPSs (650 & 800)
- Up to 8 outlets (650 & 800) to connect your PC & peripherals, or your AV equipments
- Data line protection to ensure that the internet line (including xDSL) is protected against surges
Eaton Protection Station 500 DIN
| Genel | |
| Topoloji | High frequency UPS with surge protection |
| Yapılandırma | Desktop mini tower |
| Typical Application | 1 internet computer |
| Parça Numarası | 66943 |
| Renk | Black |
| Sınıflandırma (VA/Watts) | 500/250 |
| Ebatlar (Y x G x D, mm) | 155 x 304 x 137 |
| Ağırlık (kg) | 2.9 |
| Garanti | 2 years guarantee, Standard product exchange, including the battery ; warranty for the connected computing equipment for an unlimited amount (EU countries) |
| Elektriki Giriş | |
| Bağlantı |
(1) DIN
|
| Giriş Gerilim Aralığı | 184 V – 264 V |
| Kurulum | Requires earth connection |
| Elektriki Çıkış | |
| Output power capacity (backup outlets) | 500 VA – 250 W |
| Output power capacity (all outlets) | 5 A – 1150 VA |
| Gerilimler | 230 V |
| Çıkış Yuvası |
(3) DIN
(3) DIN surge only
|
| Çıkış Frekansı | 50 / 60 Hz auto-selection |
| Performans 8/20 Dalgada | Uoc = 6 kV Up = 1.5 kV In = 2.5 kA I max = 8 kA |
| Akü | |
| Battery operation | Cold-start capable (mobile power source), battery charging even in OFF position |
| Akü İzleme | Automatic battery test, battery replacement indicator, protection against deep discharges (4-hour limit) |
| Akü Tipi | Replaceable sealed lead-acid batteries |
| Backup times with typical application | 20 min |
| Haberleşemeler | |
| Kullanıcı Arabirimi | Operation with mains/battery power, surge suppressor status, overload, battery replacement, fault, audible alarms |
| Çevresel & Standartlar | |
| Surge(Gerilim Dalgalanma) Koruması | Complete common and differential mode protection – 3 MOV – Total power: 525 Joules, compatible with IEC 61643-1 standard |
| Standartlara uyumluluk | IEC 62040-1-1, IEC 62040-2, IEC 61643-1, Marquage CE |
| Kalite ve Çevre | ISO 9001, ISO14001 |
| Veri Hattı Koruması | Protection for telephone/fax/modem/Internet ADSL line + Ethernet network |
